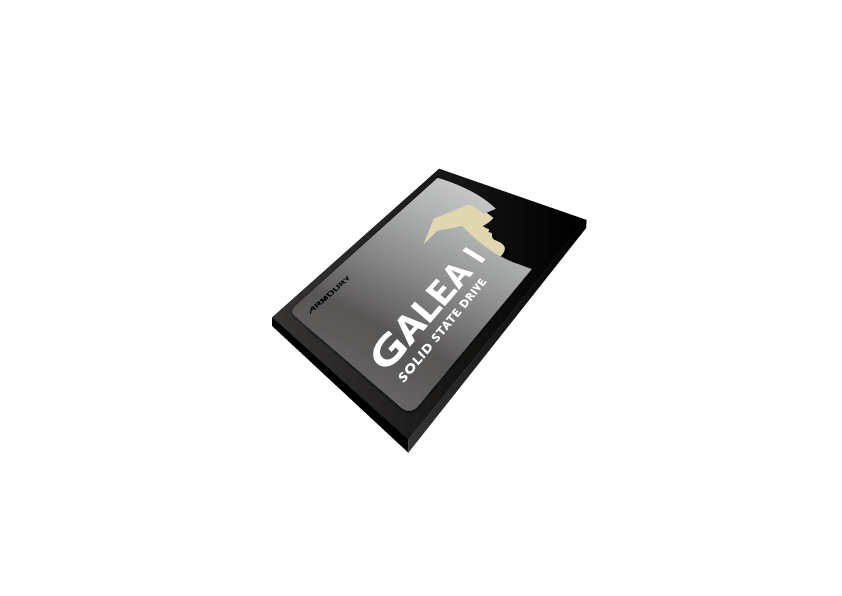

Galea Series
Overview
Galea Series is an entry-level solid-state drive built for home PC and laptop computer. It supports the Windows 10 native TRIM optimization command which is able to enhance system write speed immediately. The data transfer performance of the SSD is up to 520MB/s write and 480 MB/s read enhanced by SATA III 6Gbps specification, and available in 240GB, 480GB, and 960GB capacity.
Specifications
| Series name | Galea Series |
|---|---|
| Capacity | 240GB/480GB/960GB |
| Interface | SATA3 (6.0 Gb/s interface) |
| Transfer Speed | 600 MB/s |
| Read | Up to 500 MB/sec |
| Write | Up to 450 MB/sec |
| Form Factor | 2.5 inch |
| NAND Flash | TLC |
| MTBF | (Approx.)1,000,000 Hour |
| Operating voltage | 5V ± 5% |
| Dimension | 100.45mm(L) x69.85mm(W) x7.00mm(H) |
| Reliability feature | S.M.A.R.T、TRIM、Wear-leveling、ECC engine correcting、NCQ??Power fail management |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Shock Resistance | 1500G/0.5ms |
| Warranty | 3 years |
| Package Content | Retail package??SATA cable??.5" Adapter bracket |
| Certifications | RoHS, CE, FCC |
